muriel

A next-gen visual-production skill for LLMs.

Built for the agentic era, grounded in the full design-history lineage.

What it is

A dozen channels of tool-use recipes — ten output channels (raster, SVG, web, interactive, video, terminal, density viz, gaze, science, infographics) plus two cross-channel references (dimensions, style-guides) — each with rules, patterns, and anti-patterns. A two-tier brand-token schema with motion. A multi-constraint solver that enforces 8:1 contrast and the OLED palette at render time. A vision-model critique agent grounded in Tufte / Bertin / Gestalt / Reichle / scanpath research.

Next-gen means the tools — LLM-native skill format, vision-model critique, brand tokens alive at render time, motion as a first-class schema field, engine adapters for Pillow / Flux / pretext / ffmpeg / Playwright. Grounded means the principles — Cooper's Visible Language Workshop, Tufte's data-ink discipline, Bertin's retinal variables, Gestalt grouping, CRAP, Reichle's E-Z Reader, scanpath patterns. New tools serve the old principles.

Featured work

Shipped examples from a vision-science dev log that exemplify what muriel's channels produce. Each figure links to the live post; the repo gallery has the full set.

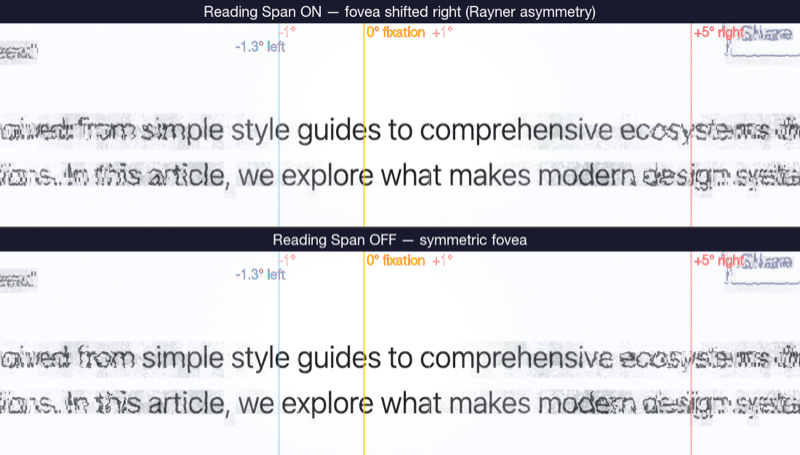

Reading Span on/off: two panels of body text with degree markers (-1.3°, 0°, +5°), comparing symmetric fovea vs. fovea shifted right

Science channel Reading span — on/off A/B.
Tools: matplotlib (figure composition) · muriel.matplotlibrc_dark (palette + rcparams) · muriel.dimensions.figsize_for('chi', columns=2) (paper-safe sizing) · muriel.stats.format_comparison() (the caption format). Paired-conditions A/B — the exact pattern muriel's science channel targets. Live post →

Color sprint — before: analytical overlay of color spectrum and palette strip on a source image

Color sprint — after: refined overlay showing the sprint's output

Raster channel Color sprint — before / after.
Tools: Pillow (image composition + draw) · matplotlib (curve overlay rendered as PNG, composited) · muriel.typeset.py (caption typography) · muriel.contrast.audit_svg() (pre-ship 8:1 check on annotations). Canonical small-multiples A/B. Live post →

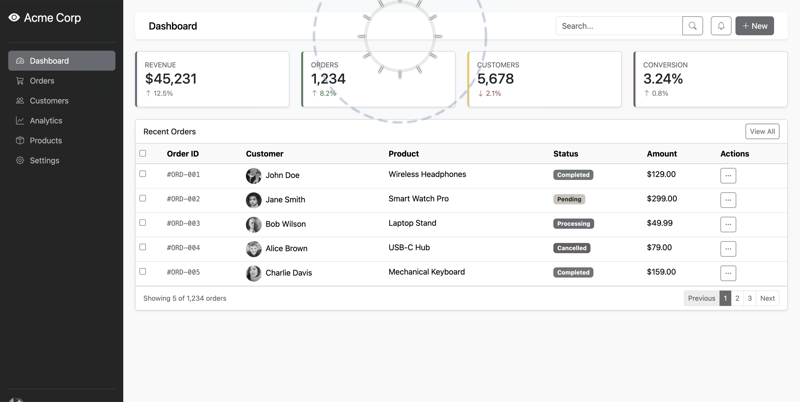

Dashboard with subtle foveation mode 6 applied

Raster channel — interactive → captured Dashboard mode comparison.
Tools: a WebGL foveation engine (external — Scrutinizer) for the rendering · muriel.capture.capture_responsive() for the retina screenshots · Pillow for side-by-side composition · muriel.dimensions.OG_CARD for final size. Same stimulus, two processing modes. Live post →

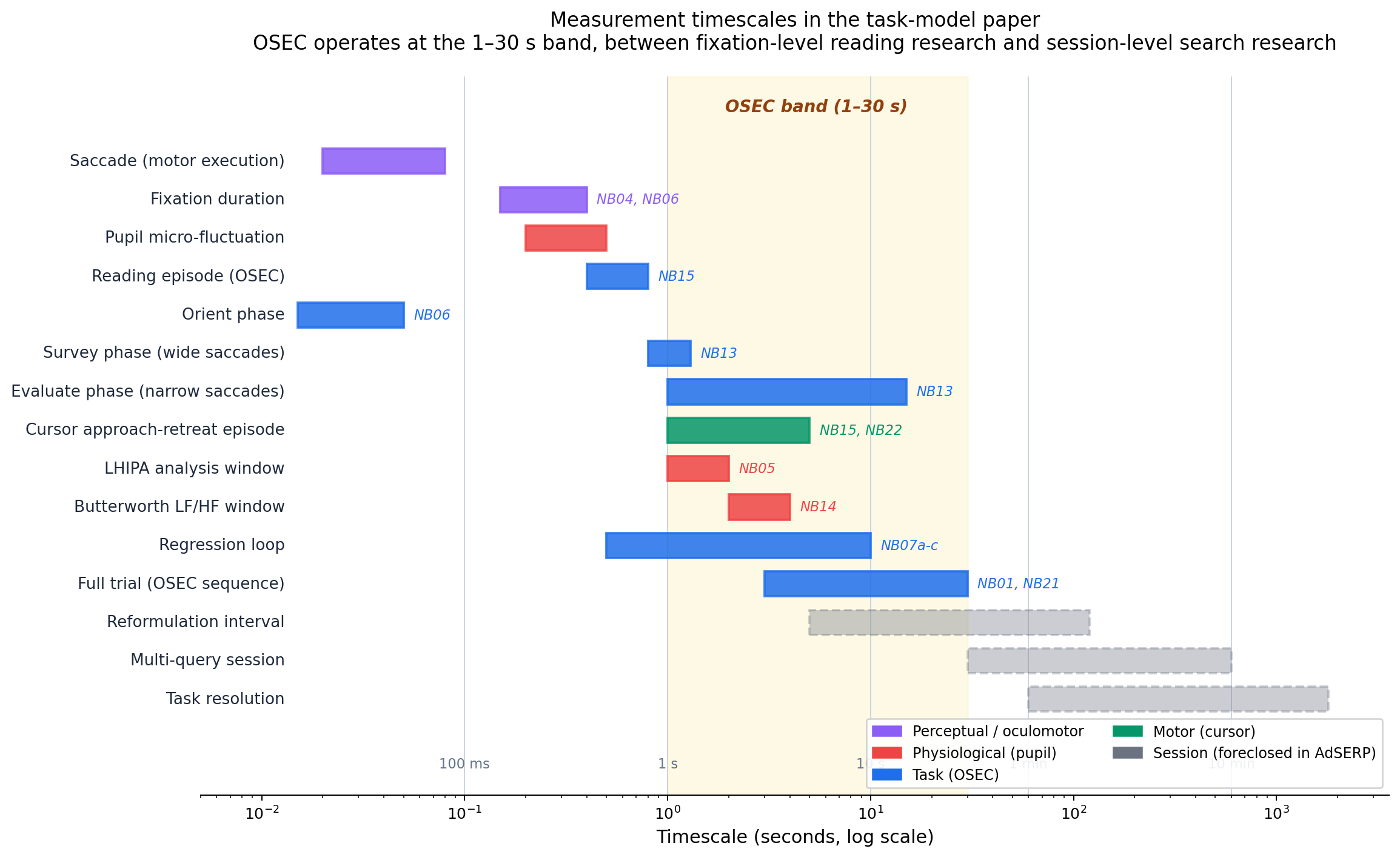

Measurement timescales — OSEC lives in the 1–30 s band, between fixation-level reading research and session-level search research

Science channel OSEC measurement timescales.
Tools: matplotlib (horizontal Gantt-style bars on log-scale x-axis) · muriel.matplotlibrc_light (warm editorial palette) · muriel.dimensions.figsize_for('cikm') (paper-safe sizing) · annotated with notebook-K-claim references from the project's Key Claims aggregate. Maps each measurement primitive (saccade, fixation, pupil micro-fluctuation, OSEC orient/survey/evaluate phases, LHIPA window, regression loop, full trial, multi-query session) onto seconds-log space with the OSEC operating band highlighted. The figure that situates a research program in one frame. Live post →

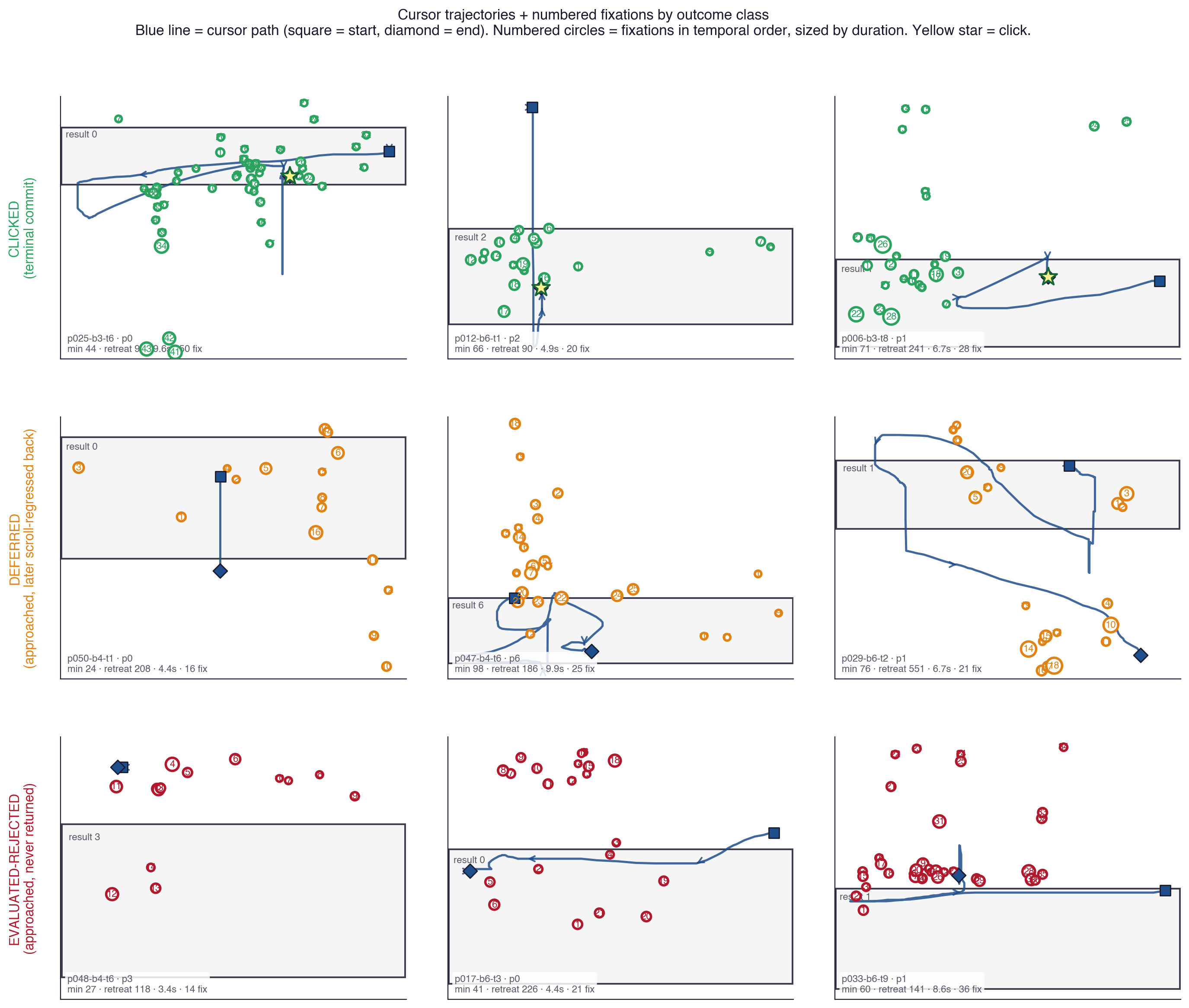

3×3 small-multiples grid of cursor + gaze trajectories on SERP results, color-coded by outcome class — clicked (green, top), deferred (orange, middle), evaluated-rejected (red, bottom). Each panel shows the result AOI rectangle, blue cursor path with start-square and end-diamond markers, and numbered fixation circles sized by duration.

Gaze channel — small multiples Cursor + gaze trajectories by outcome class.
Tools: matplotlib subplot grid (3×3) · muriel.gaze primitives (numbered fixations sized by duration, start-square / end-diamond cursor markers, AOI rectangles) · muriel.matplotlibrc_light palette · class-coded color (green clicked / orange deferred / red eval-rejected). The small-multiples principle made literal: identical axes and encoding, only the outcome class varies row-by-row. Reading the rows reveals the behavioral signature (tight tracking → late return → never return). Live post →

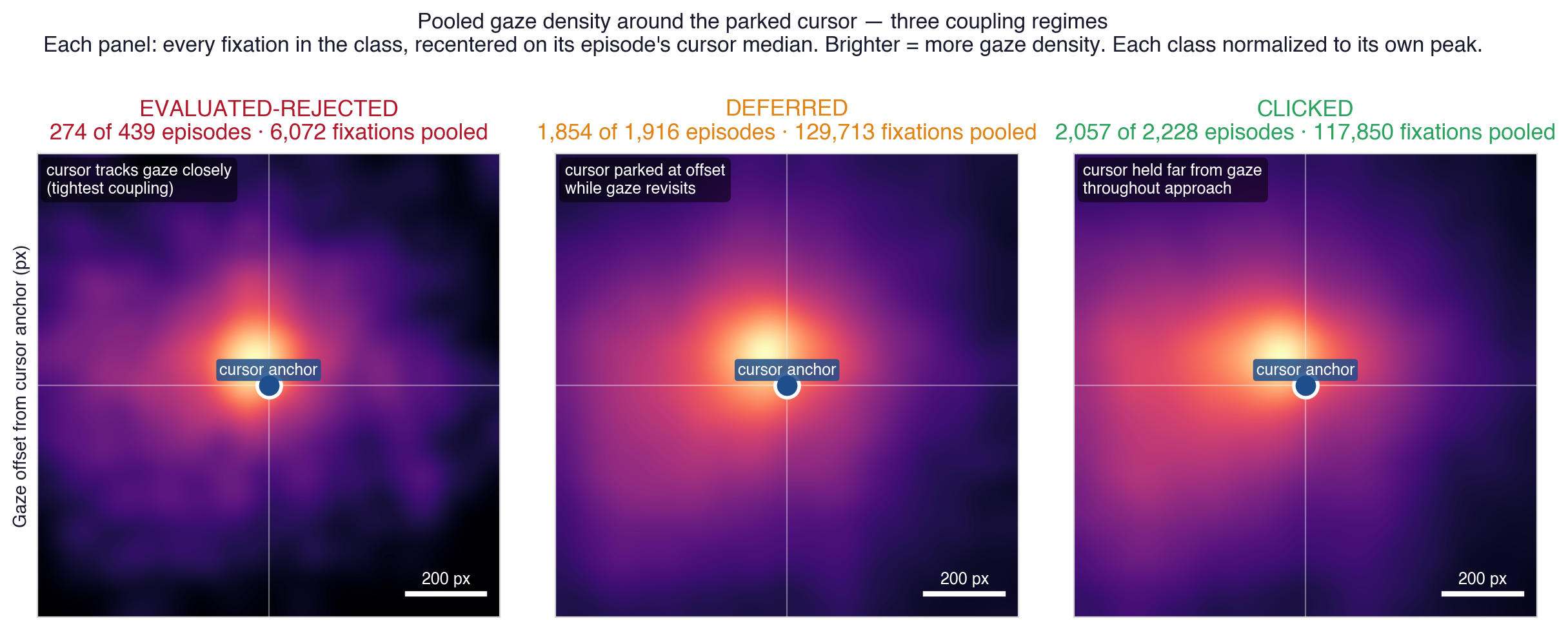

Three-panel pooled gaze density heatmaps showing cursor-gaze coupling regimes for evaluated-rejected, deferred, and clicked outcome classes. Fire colormap, each panel normalized to its own peak, with 200px scale bar and cursor anchor at center.

Density viz channel Pooled gaze density around the parked cursor — three coupling regimes.
Tools: numpy 2D histogram for the density estimation · matplotlib imshow with the inferno-family fire colormap · per-panel peak normalization · muriel.heatmaps conventions (Tobii-style Gaussian-pooled overlay, scale-bar annotation, normalized luminance against ground-truth landmarks). Pools every fixation in each outcome class, recentered on its episode's cursor median: tight coupling (eval-rejected, ~220 px) → cursor parked at offset while gaze revisits (deferred, ~300 px) → cursor held far from gaze throughout approach (clicked, ~390 px). The figure that makes a population statistic visible as a shape. Live post →

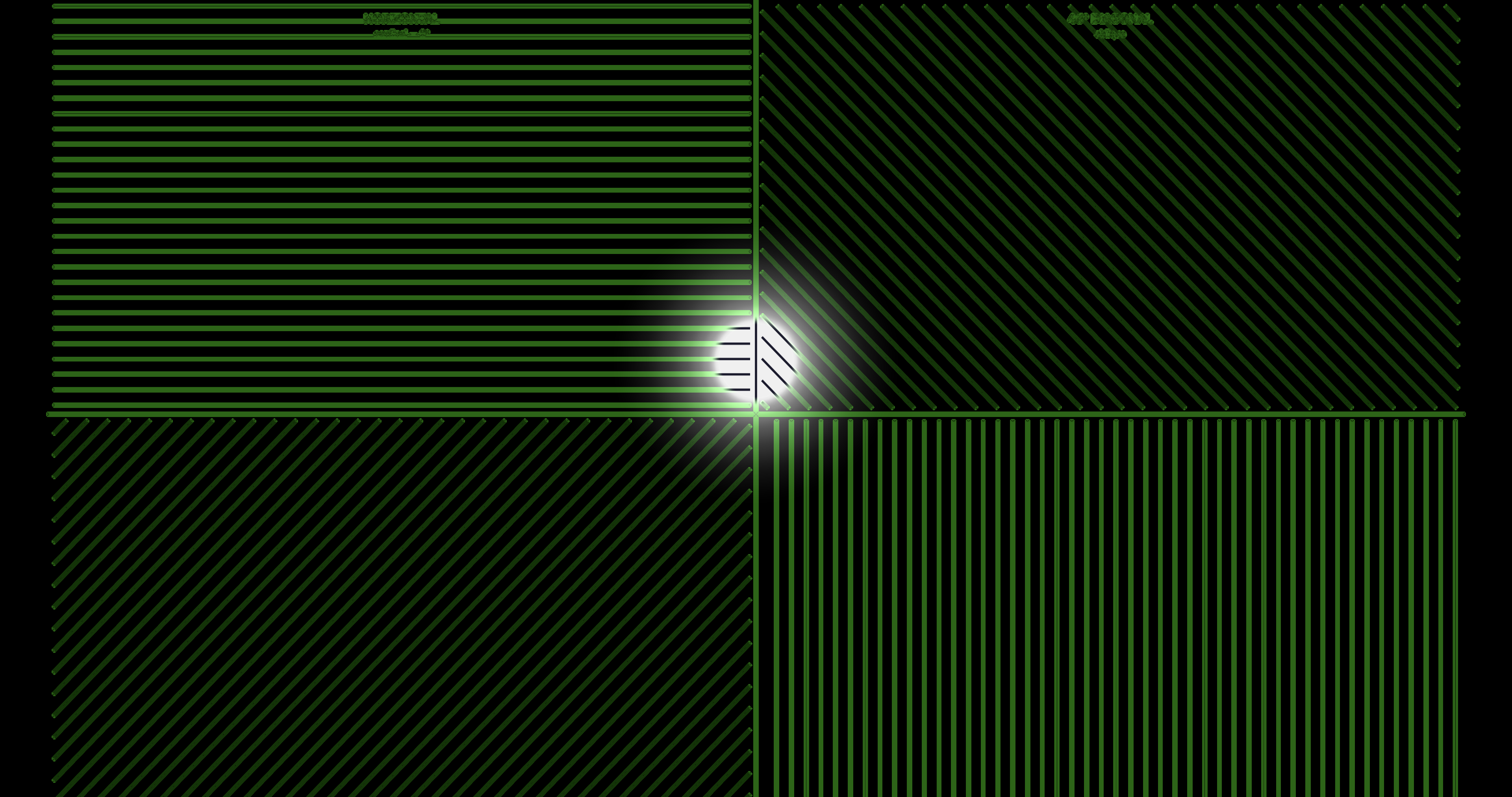

Four-quadrant orientation grid (horizontal, anti-diagonal, main-diagonal, vertical) on near-black with green orientation lines — a foveated spotlight at center reveals oriented structure clearly inside the foveal region while peripheral quadrants stay in their oriented-grid encoding, demonstrating cortical-grid sampling vs rectangular sampling.

Interactive channel — interactive → captured Cortical grid comparison — orientation energy revealed by foveation.
Tools: a WebGL grid-comparison demo (external — Scrutinizer's reference-pages/grid-comparison.html, four orientation tiles + foveated spotlight, isotropic-cortical sampling) for the rendering · muriel.capture.capture_responsive() for the retina screenshot · the OLED palette (cream-on-near-black) preserved through capture. Pairs the live interactive substrate with muriel's static-capture pipeline — a demonstration that "the figure" and "the demo" can share a source. Live post →

Motion tuner

muriel's brand.toml ships a [motion] block with duration tokens (instant / fast / normal / slow / reveal, in ms) and easing tokens (default / emphasis / snappy / linear). Move the sliders; the animated bars below re-play at every change. Copy the resulting TOML snippet back into any project's brand.toml to apply.

Duration 240 ms Easing default Stagger 40 ms

Install

As a Claude Code skill:

git clone https://github.com/andyed/muriel ~/Documents/dev/muriel
cd ~/Documents/dev/muriel && ./install.sh

Then invoke with /muriel from any Claude Code session. See the Install section in the README for Python package and cross-harness instructions.

The critique agent

muriel ships a vision-model critique agent with read-only tools, hardened against prompt-injection, authority-laundering, and contrast-claim spoofing embedded in the artifact itself. It names what's wrong — with evidence — and cites the specific framework (Tufte / Bertin / Gestalt / CRAP / Reichle / scanpath) when surfacing issues. Fix is a human call; the agent doesn't try.

How to invoke: from any Claude Code session, dispatch the muriel-critique subagent on a rendered artifact. It returns a structured verdict — PASS / NEEDS REVISION / FAIL — with a numbered issue list (rule · evidence · fix · severity). Any CRITICAL → FAIL; any HIGH → NEEDS REVISION; otherwise PASS.
