Design that you can inspect

Muriel is a design skill for coding agents. It connects perception and interaction research to working interfaces, typography, charts, diagrams, and motion. Guides help choose a representation; demos make its behavior visible; source lets you adapt it to your project.

Named after Muriel Cooper, co-founder of MIT’s Visible Language Workshop. The Visible Language guide traces that design lineage and connects it to contemporary collection and linked-view examples.

Explore, select, inspect

Wunderkammer’s collection wall of Psychodeli frames grouped by capture month

Wunderkammer

Survey a collection, filter and regroup it, then inspect the individual frame. The wall, spatial aisle, and attribute-based arrangements offer different ways to explore the same material. The guide and screenshot cover release 0.3.0; the live demo can change independently.

Try the wall ↗ · Explore the aisle ↗ · Read the guide · View source ↗

Linked Atlas

Follow a selected cohort across an overview, a zoomed plot, a habitat breakdown, and a record table. Synthetic observations keep the focus on interaction: what stays selected, what changes with zoom, and how to recover your place.

Try the demo · Read the guide · View source ↗

Made with HyperFrames

Two films built from working software. Capture the interaction in the app, compose the titles and transitions in HyperFrames, then encode the finished cut. The same spatial material becomes both an explorable collection and a film.

Cats. Lots of cats.

Wunderkammer · 28 seconds · Silent

One cat opens into a rushing aisle of images. Filter to ginger coats, arrange by colour and era, then connect an observation to its supporting images. Cat artwork generated with Adobe Firefly; the collection views are captured from Wunderkammer.

Watch on YouTube ↗ · Production notes and scene descriptions · Collection guide · Try Wunderkammer ↗

Psychodeli — a dance partner for your senses.

Spatial promo · 39 seconds · Music, no narration

Recorded Psychodeli visuals become moving tiles in a warehouse, stacks, a wall, and a sphere. The sequence lands on the animated wordmark and platform end card. HyperFrames brings the captured scenes, typography, and soundtrack together.

Production notes and scene descriptions · Video guide · Explore Psychodeli ↗

Featured work

A selection of visual artifacts and the recipes behind them. The examples index brings the live demos and worked artifacts together, with guides and source.

Spatial — 2x2 panel of perspective grids on near-black: one-point (Tron corridor with single vanishing point on the horizon), two-point (architectural cube corner with two horizon vanishing points and vertical lines), three-point (looking-up tower with three vanishing points), and isometric (three parallel axes at 30°/150°/90°). Cyan grid lines with magenta horizon, fading toward the vanishing points.

Spatial channel — depth scaffolding Perspective grids — 1pt / 2pt / 3pt / iso.
Tools: muriel.spatial.grid() emitting deterministic SVG · pure Python, zero deps · Liang-Barsky line clipping · fade-to-horizon depth weighting on transversals · OLED palette throughout. The static side of the spatial channel — pairs with interactive spatial exemplars — Cooper VLW · Data Mountain · Perspective Wall — now live and interactive in the demo gallery, sharing the same coordinate space by design. Channel doc names the full lineage: Alberti 1435 → Dürer 1525 → Cooper VLW 1980s → Mackinlay-Robertson-Card 1991 → Robertson et al. Data Mountain 1998 → Tron. ▸ Live demo gallery →   Channel doc →

Typography — a giant serif drop-cap 'H' in muriel's anatomical pink (#c07fa0) sitting on a log-polar cortical-magnification grid: concentric rings expanding from a foveal singularity at center, crossed by radial spokes, all on near-black. Type rendered on the cortical substrate it'll be read with.

Typography — type as structure Drop cap H × log-polar cortical grid.
Tools: muriel.typeset drop-cap generator emitting deterministic SVG · log-polar grid backdrop (Schwartz 1977 cortical-magnification mapping — concentric rings + radial spokes traced outward from a foveal singularity) · serif glyph rendered as a filled vector path so it scales to any column width · OLED palette with the anatomical-pink (#c07fa0) accent muriel uses for cortical / retinal annotations. Pairs with the spatial channel — type rendered on the substrate it'll be read with, not floating in an abstract layout box. Drop-caps gallery →

Patterns — three deterministic background primitives side by side on near-black: dots (Bridson Poisson-disk sampling — evenly-spaced cream dots with no obvious tiling), flow (value-noise streamlines traced as cyan curves following a smooth vector field, LIC-style), and grain (value-noise raster as a small SVG pattern tile of cream rects with varying opacity, repeating like film grain).

Raster / SVG channels — generative backgrounds Patterns — dots, flow, grain.
Tools: muriel.patterns · pure Python, zero deps · Bridson (2007) fast Poisson-disk sampling for dots · value-noise vector field traced as polyline streamlines (LIC-style after Cabral & Leedom 1993) for flow · value-noise raster sampled into a small SVG <pattern> tile for grain (file size stays O(tile_cells²) regardless of canvas). All randomness routes through hashlib.blake2b — same seed produces byte-identical SVG across platforms. The workhorse-background layer the screenshot-designer P0 plugs into. Source →

Diagrams — a 5-step cycle diagram on near-black titled 'Evolver's improvement cycle': five cyan-circled numbered nodes (1 Learns, 2 Executes, 3 Evaluates, 4 Hypothesizes, 5 Tests) arranged evenly on a circle, connected by curved cyan arrows running clockwise, with each label margin-placed outside its node.

Diagrams channel — rhetorical primitives N-step cycle — Evolver's improvement loop.
Tools: muriel.tools.diagrams.cycle() emitting deterministic SVG · five nodes evenly spaced on a circle, curved cyan arrows with auto-derived endpoint tangents · auto-placed labels (margin-aware, never overlapping the nodes — uses the same bbox-aware placement as muriel.layout.place_label) · OLED palette · 8:1 on every text node. One of the shipped rhetorical primitives (alongside 2×2 matrix and Venn). Each preset carries an epistemic precondition + anti-prescription — don't use a cycle when your process has an exit. Channel doc →

Round-trip flow — three columns on near-black: SOURCE (design.md frontmatter from Google Stitch / awesome-design-md with canvas, ink, body, primary color keys) on the left, HUB (brand.toml in muriel's v2 schema with [colors] and [colors.aliases] blocks) cyan-bordered in the middle, DOWNSTREAM (W3C DTCG tokens.json with $value / $type pairs and alias references) on the right. Two coral arrows labeled 'import' and 'export-dtcg' connect the columns.

Brand tokens — import and export design.md ↔ brand.toml ↔ W3C DTCG.
Tools: muriel import (Google Stitch design.md → brand.toml) · muriel export-dtcg (brand.toml → W3C Design Tokens Community Group JSON) · pure Python, no DTCG-validator dependency. All 61 import-parseable brands in VoltAgent/awesome-design-md round-trip cleanly through both halves with zero failures. The exported JSON drops straight into style-dictionary, theo, Figma tokens-studio, or token-css — and from there into iOS / Android / Tailwind / CSS-vars pipelines. This worked example was introduced in v0.8.0. Read the guide → · Original release notes →

Scrutinizer foveation explainer infographic — three stacked panels: anatomical (fovea ~2° wide vs periphery ~200° wide), statistical (acuity falls off fast — at 15° you see ~3× less detail), and 'what your users actually see' (small-multiples grid at 0°/5°/15°/30°). Hero stat reads '2° is sharp. The rest is inferred.'

Infographics channel — three-panel single-page Foveation explainer — Scrutinizer brand asset.
Tools: hand-rolled build_foveation.py emitting deterministic SVG (no D3, no template engine) · OLED palette (cream-on-near-black) for portfolio coherence · 8:1 contrast on every text node verified at build time · rsvg-convert for PNG raster. Single-page LinkedIn-shareable infographic stacking anatomical / statistical / "what users see" panels — the channel that turns a research thesis into one shareable artifact. Lives on the Scrutinizer brand page. Live page →

Orientation columns in V1 — deterministic SVG showing a hex grid of teal oriented strokes whose angles vary smoothly across the cortical surface, with five pinwheel singularities marked as dots where every orientation meets. Title 'Orientation columns in V1' on near-black, footer notes the multi-pinwheel orientation field generation method.

SVG / Science channels — deterministic illustration V1 orientation columns — pinwheel topology.
Tools: hand-rolled v1-orientation-columns-demo.py emitting deterministic SVG (no D3, no template engine) · multi-pinwheel orientation field (vector averaging on doubled angles to preserve V1's 180° periodicity) over a hex grid · muriel OLED palette · 8:1 contrast on every text node. Replaces an AI-generated illustration of the same concept — muriel's whole point: generated, not guessed. Topology after Bonhoeffer & Grinvald, Nature 1991. Source →

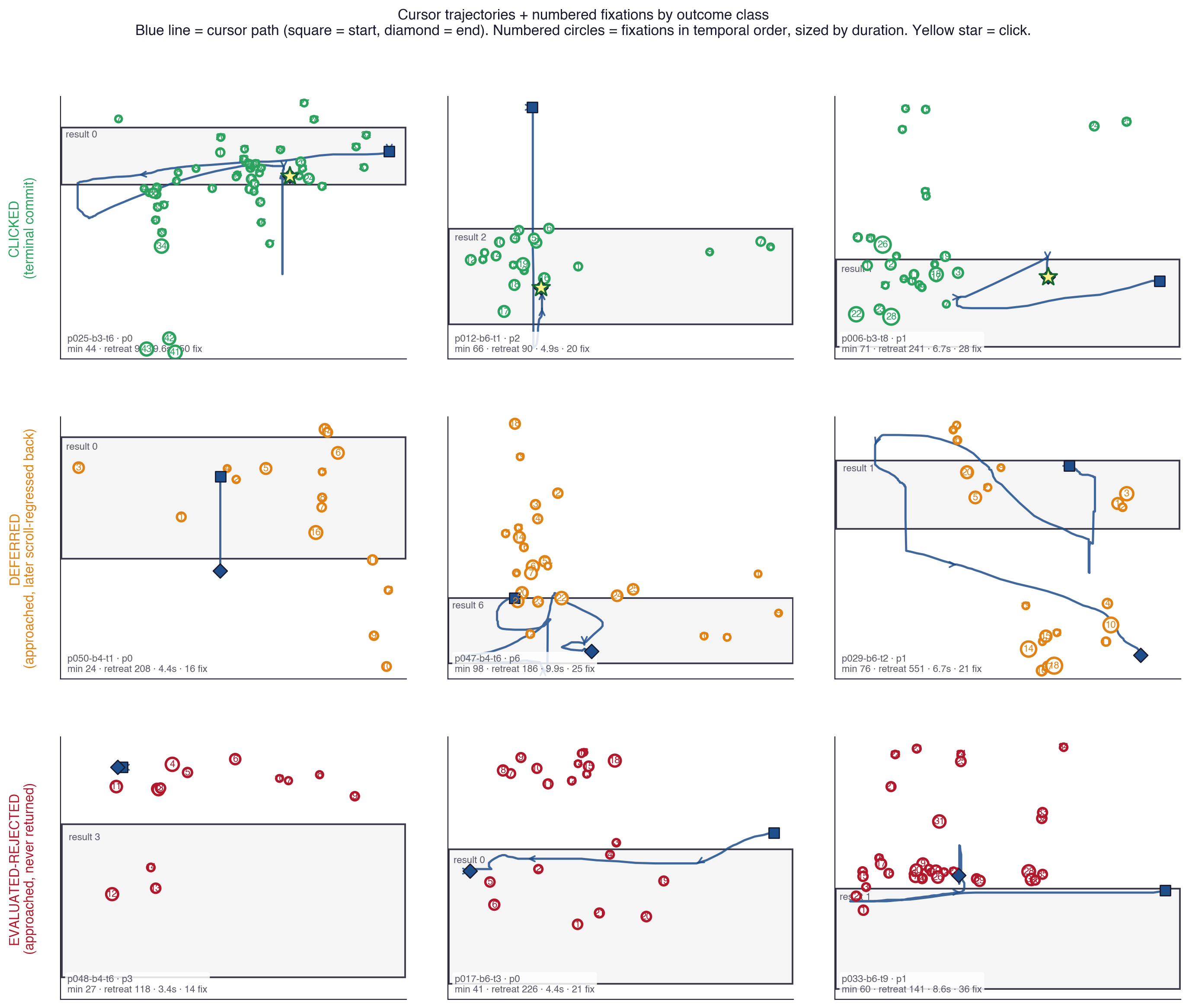

3×3 small-multiples grid of cursor + gaze trajectories on SERP results, color-coded by outcome class — clicked (green, top), deferred (orange, middle), evaluated-rejected (red, bottom). Each panel shows the result AOI rectangle, blue cursor path with start-square and end-diamond markers, and numbered fixation circles sized by duration.

Gaze channel — small multiples Cursor + gaze trajectories by outcome class.
Tools: matplotlib subplot grid (3×3) · muriel.gaze primitives (numbered fixations sized by duration, start-square / end-diamond cursor markers, AOI rectangles) · muriel.matplotlibrc_light palette · class-coded color (green clicked / orange deferred / red eval-rejected). The small-multiples principle made literal: identical axes and encoding, only the outcome class varies row-by-row. Reading the rows reveals the behavioral signature (tight tracking → late return → never return). Project source →

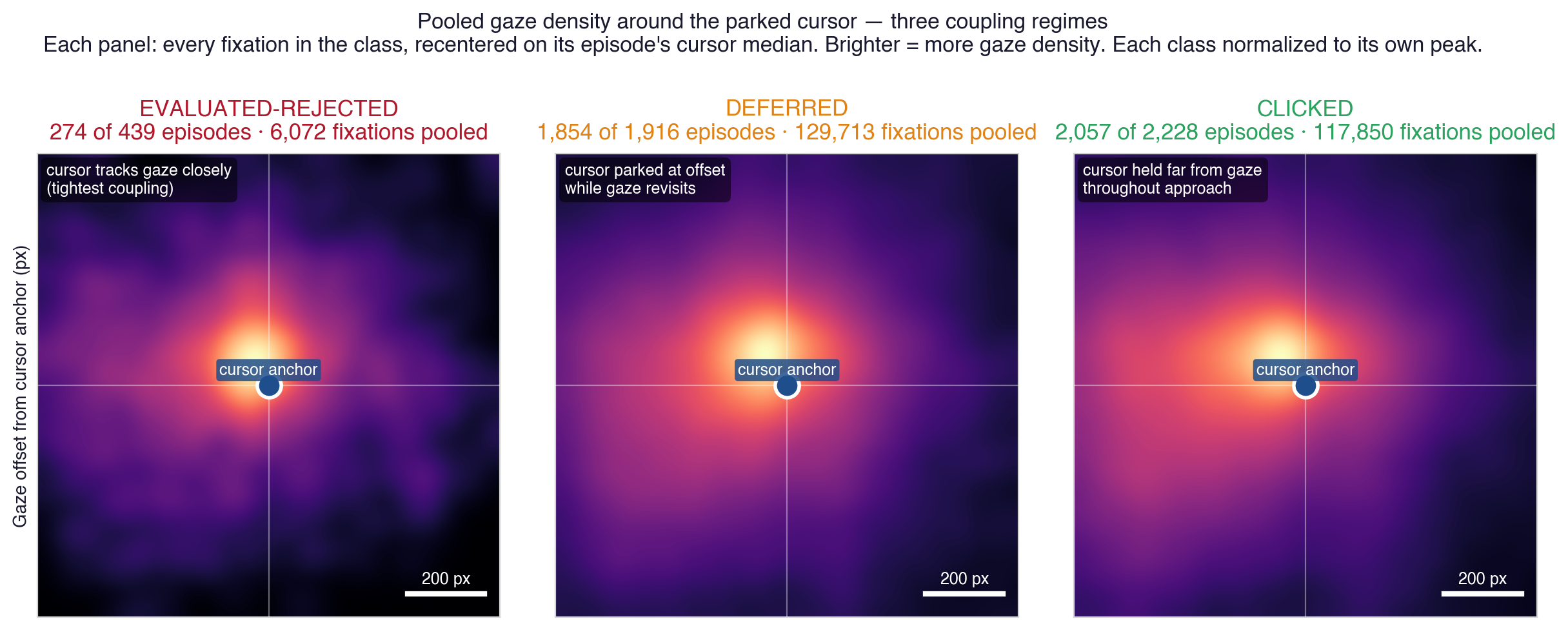

Three-panel pooled gaze density heatmaps showing cursor-gaze coupling regimes for evaluated-rejected, deferred, and clicked outcome classes. Fire colormap, each panel normalized to its own peak, with 200px scale bar and cursor anchor at center.

Density viz channel Pooled gaze density around the parked cursor — three coupling regimes.
Tools: numpy 2D histogram for the density estimation · matplotlib imshow with the inferno-family fire colormap · per-panel peak normalization · muriel.heatmaps conventions (Tobii-style Gaussian-pooled overlay, scale-bar annotation, normalized luminance against ground-truth landmarks). Pools every fixation in each outcome class, recentered on its episode's cursor median: tight coupling (eval-rejected, ~220 px) → cursor parked at offset while gaze revisits (deferred, ~300 px) → cursor held far from gaze throughout approach (clicked, ~390 px). The figure that makes a population statistic visible as a shape. Project source →

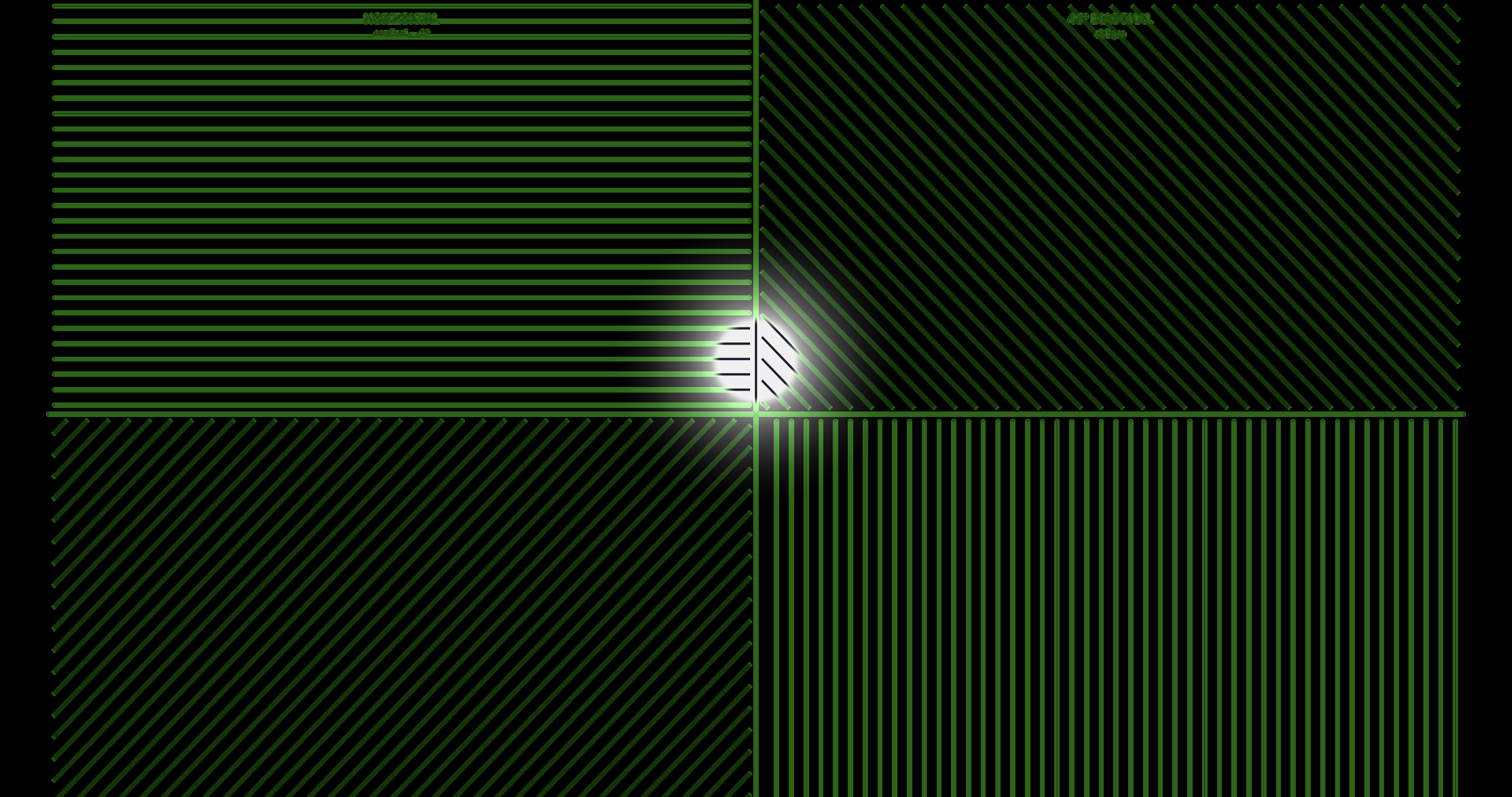

Four-quadrant orientation grid (horizontal, anti-diagonal, main-diagonal, vertical) on near-black with green orientation lines — a foveated spotlight at center reveals oriented structure clearly inside the foveal region while peripheral quadrants stay in their oriented-grid encoding, demonstrating cortical-grid sampling vs rectangular sampling.

Interactive channel — interactive → captured Cortical grid comparison — orientation energy revealed by foveation.
Tools: a WebGL grid-comparison demo (external — Scrutinizer's reference-pages/grid-comparison.html, four orientation tiles + foveated spotlight, isotropic-cortical sampling) for the rendering · muriel.capture.capture_responsive() for the retina screenshot · the OLED palette (cream-on-near-black) preserved through capture. Pairs the live interactive substrate with muriel's static-capture pipeline — a demonstration that "the figure" and "the demo" can share a source. Live post →

Motion tuner

Read the brand and motion guide · View tuner source ↗

muriel's brand.toml ships a [motion] block with duration tokens (instant / fast / normal / slow / reveal, in ms) and easing tokens (default / emphasis / snappy / linear). Move the sliders; the animated bars below re-play at every change. Copy the resulting TOML snippet back into any project's brand.toml to apply.

240 ms default 40 ms









Use Muriel in your project


Install the Claude Code plugin:


/plugin marketplace add andyed/muriel
/plugin install muriel@andyed-muriel


Invoke /muriel:compose. For other agent harnesses, Python, and development installs, use the installation instructions. The skill guide explains how Muriel joins the project’s design and implementation work.







Critique and the jury


The critique agent reviews a rendered artifact and records issues with evidence. When a consequential visual decision remains contested after deterministic checks, Muriel can convene an experimental jury with distinct review lenses.


The roster includes the Squinter, Thumbnail, Loupe, Stranger, Forger, and Pedant. Loupe inspects magnified detail. The panel preserves disagreement and records its reasoning; its findings do not substitute for human validation.


Read the jury protocol · Read the Loupe guide
